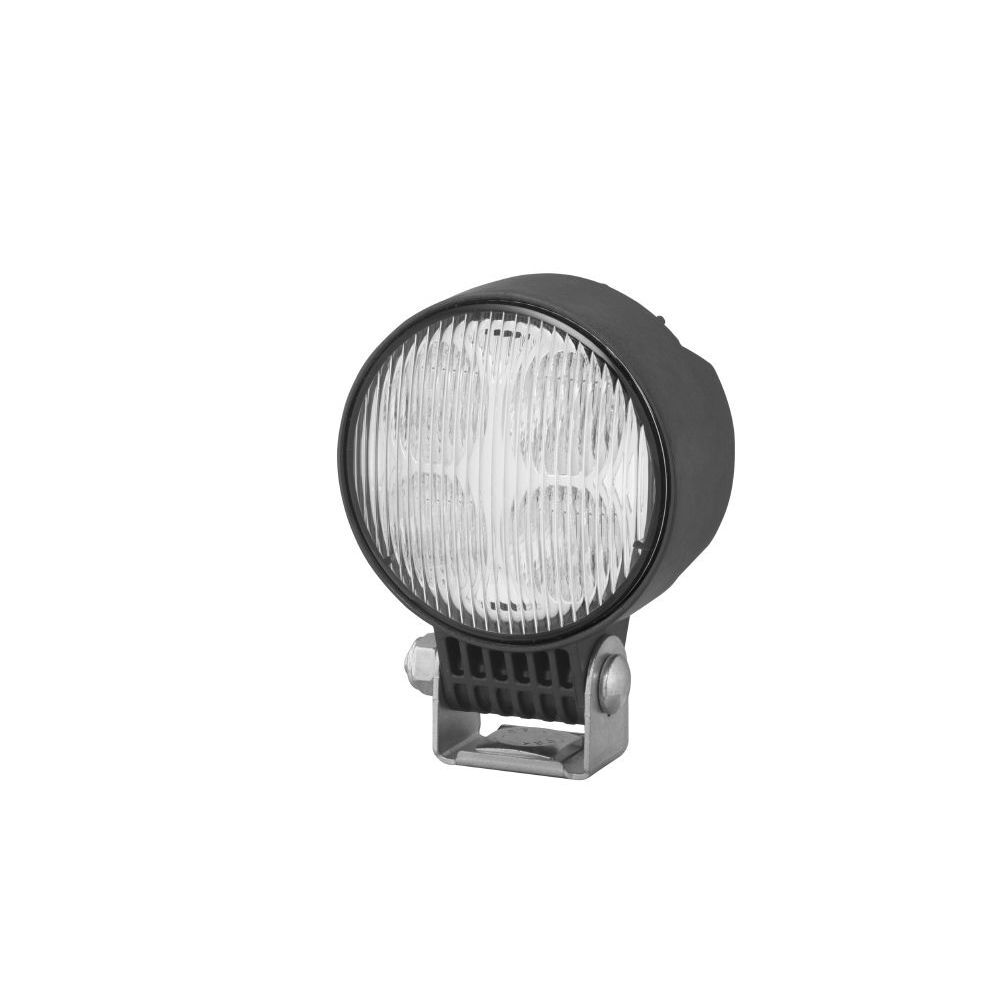

HELLA LED Round Worklamp Long-Range Beam 12/24V 11.2W 1150 Lumens IP69K

Need reliable long-range visibility without the bulk or power draw of older lighting? The HELLA LED Round Worklamp delivers 1150 lumens of long-range illumination in a compact, durable housing — built to handle whatever conditions your rig throws at it.

Engineered for Reliable, Long-Range Light

With a clear polycarbonate diffusing lens and long-range light distribution, this worklamp is designed to throw light further, giving you better visibility where you need it most. Running on just 11.2W (12V) or 11.6W (24V), it's an efficient option that won't put unnecessary strain on your electrical system.

Built Tough, Built to Last

Housed in a synthetic material casing with IP6K7 and IP6K9K-rated protection against dust and high-pressure water, this lamp is built for serious off-road and working conditions. The swivelling mounting bracket allows for suspended or vertical mounting, giving you flexibility to position it exactly where you need it.

Compliant and Ready to Install

Fitted with a DEUTSCH plug for a reliable connection, this lamp fulfils ECE Norm R10 and is ADR/GGVS approved, making it suitable for a wide range of vehicle applications.

Key Features:

  • 1150 lumens output for long-range illumination
  • 12V/24V compatible, 11.2W/11.6W power consumption
  • 2 LEDs per lamp with 6500K colour temperature
  • IP6K7 and IP6K9K-rated dust and water protection
  • Clear polycarbonate diffusing lens
  • Swivelling mounting bracket for suspended or vertical fitment
  • DEUTSCH plug connection
  • Electromagnetic Compatibility (EMC) compliant
  • Fulfils ECE Norm R10, ADR/GGVS approved

Specifications:

FeatureDetails
Product NameLED Round Worklamp – Long-Range Beam
BrandHELLA
Model Number1G0 996 776-201
Light DesignLED
Number of LEDs2
Light DistributionLong-Range Illumination
Luminous Flux1,150 lm
Voltage12V / 24V (9V–32V Range)
Power Consumption11.2W (12V) / 11.6W (24V)
Colour Temperature6,500K
Ingress ProtectionIP6K7, IP6K9K
Plug TypeDEUTSCH Plug
Housing MaterialSynthetic Material
Housing ColourBlack
Diffusing LensClear Polycarbonate (PC)
Mounting TypeBolted, Swivelling Bracket – Suspended/Vertical
ComplianceECE Norm R10, ADR/GGVS Approved, EMC Compliant
Dimensions (W x D x H)83mm x 64mm x 114mm
