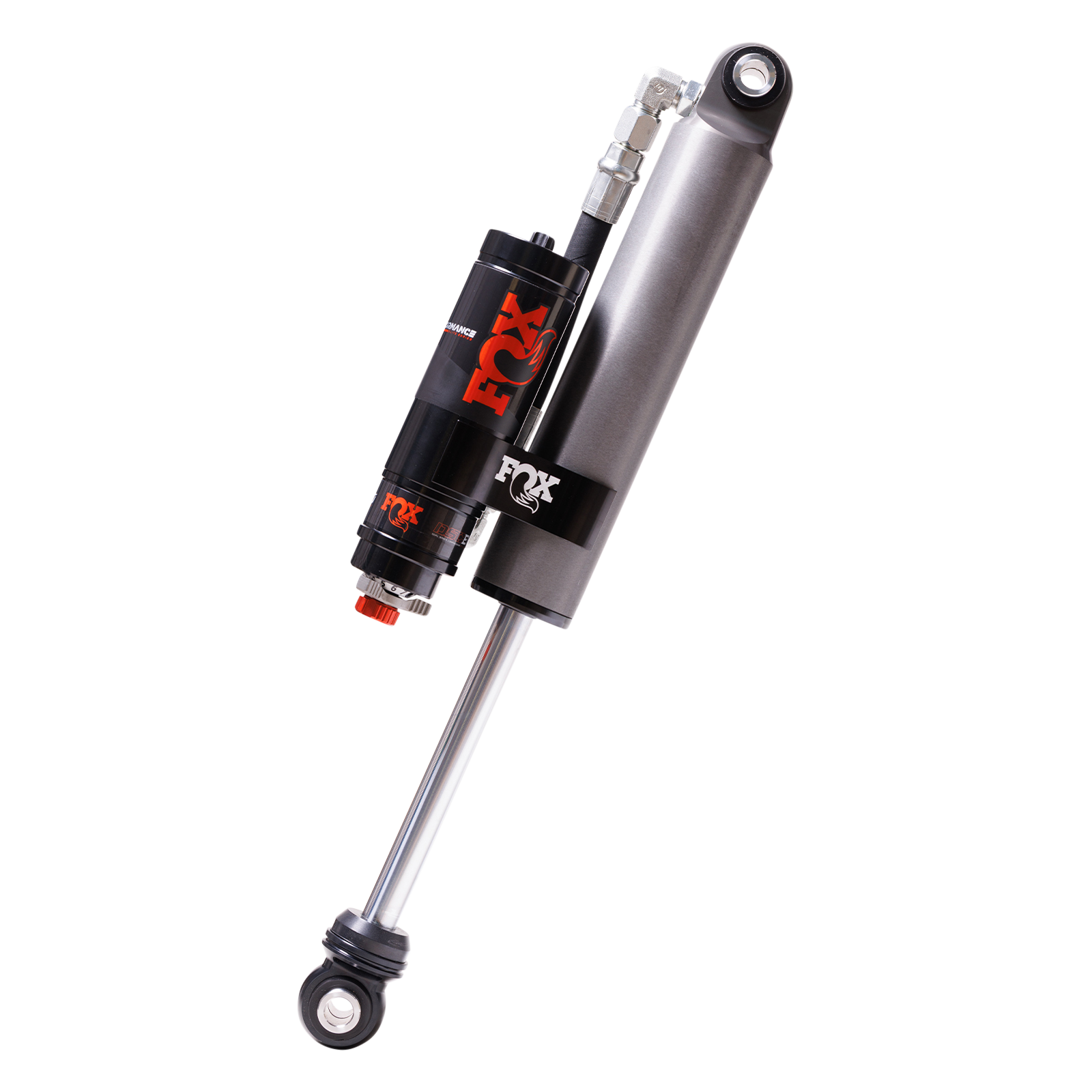

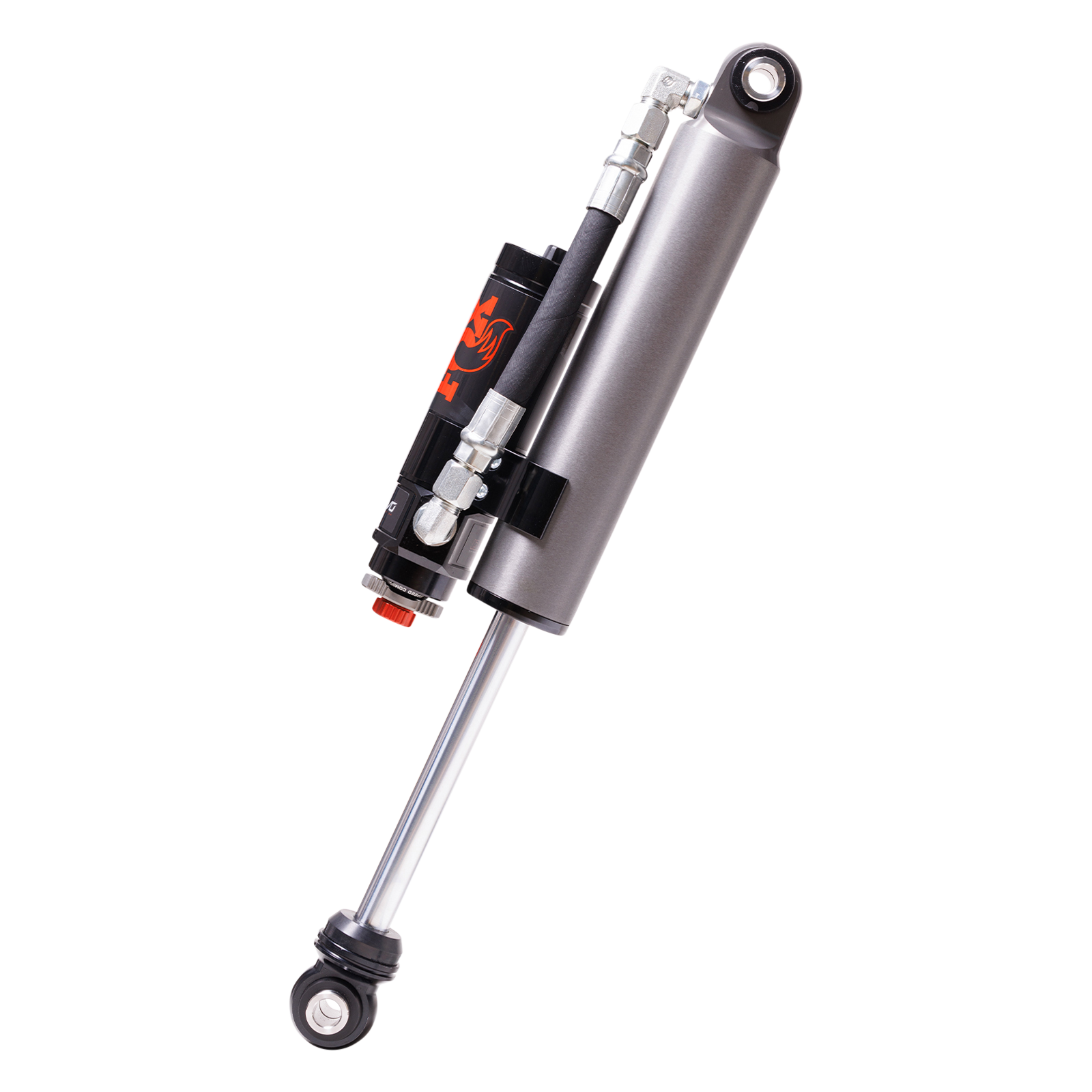

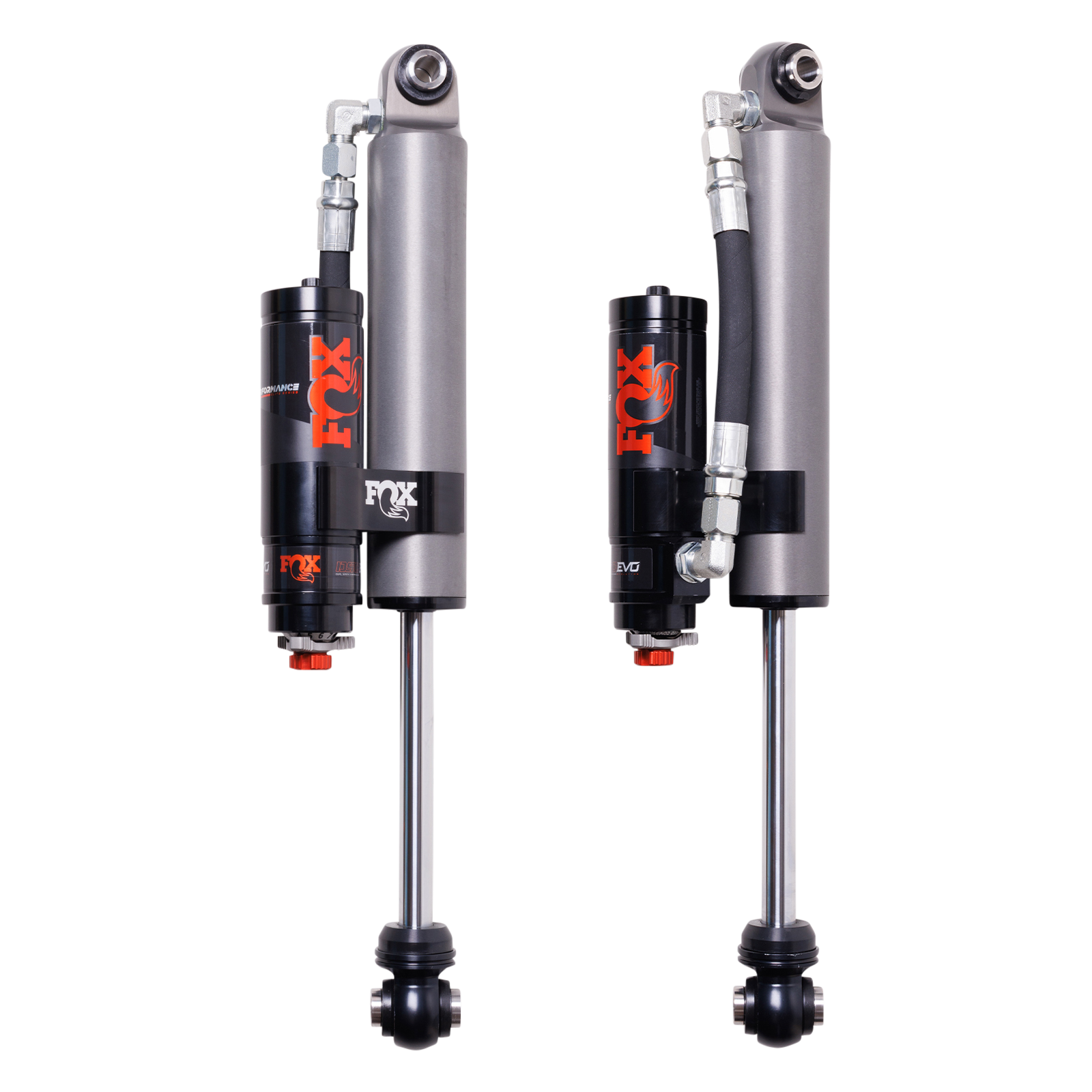

FOX Performance Elite Series 2.5 shocks featuring DSC EVO are a bolt-on solution tuned for the INEOS Grenadier. Optimize vehicle performance without compromising OEM reliability and vehicle behavior.

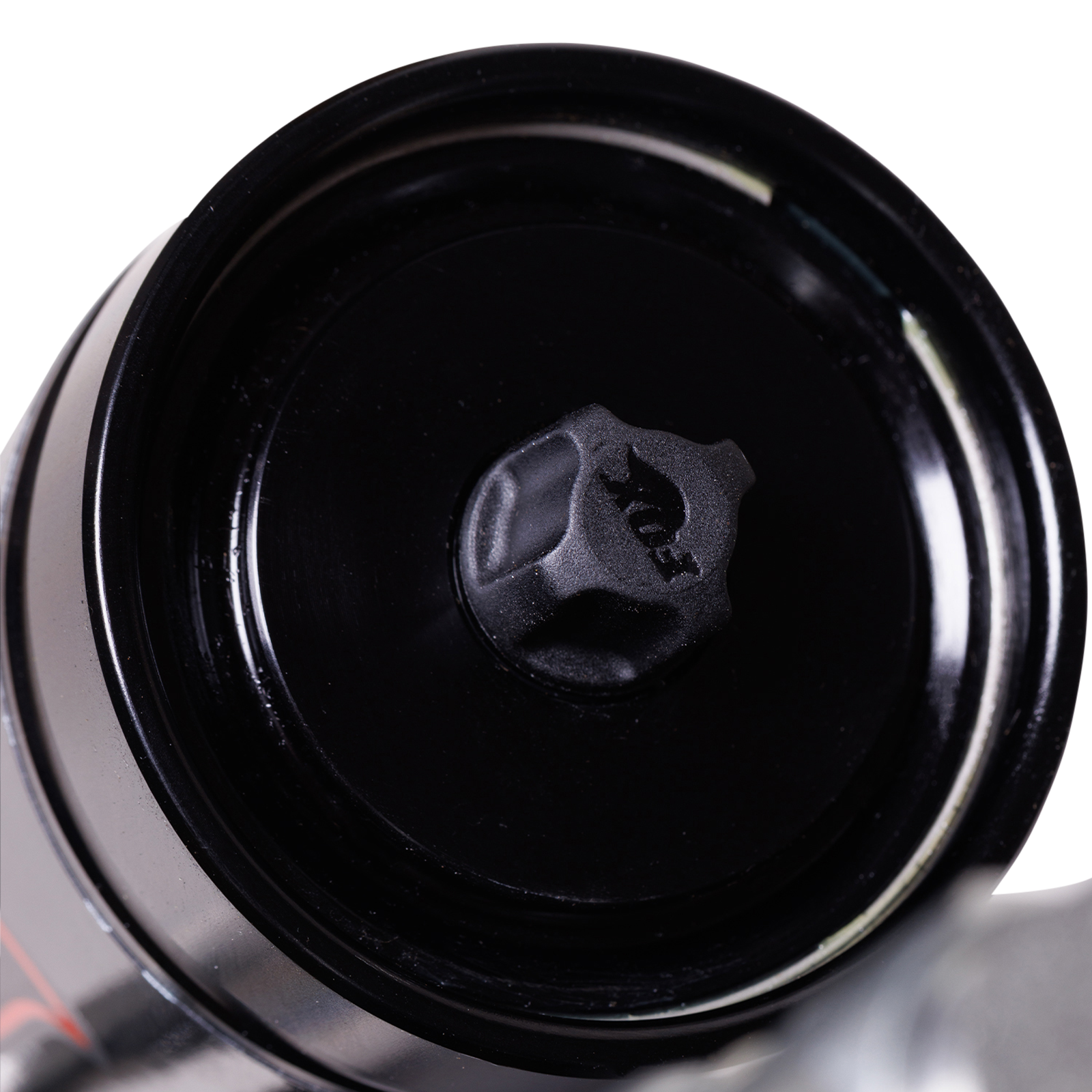

Type III anodization prevents corrosion and wear of the 2.5-inch aluminum bodies. External reservoirs increase oil capacity, allow additional shock stroke to maintain available travel, and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock.

DSC EVO features Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of highspeed compression without sacrificing small-bump sensitivity.

Performance Elite shocks with DSC EVO provide versatility without compromise to navigate rough terrain and improve on-road manners while remaining comfortable and in control.

FEATURES

2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body

7/8" hard chromed steel shafts

Vehicle-specific tuning maximizes performance

Redundant sealing pack system: main seal, wiper seal, scraper seal

External reservoir, with DSC EVO adjuster

SERIES Performance Elite
TRAVEL 8.58
BODY 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
BODY PLATING Hard-anodized for a durable finish
COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT 7/8" hard chrome plated heat-treated alloy steel
PISTON Race-developed high-flow piston design
VALVING Application specific valving to maximize performance
SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
BEARINGS PTFE-lined, heat-treated, alloy steel spherical
EXTENDED LENGTH 23.48
COMPRESSED LENGTH 14.9
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet
FITMENT NOTES Includes Resi to Body Clamp
