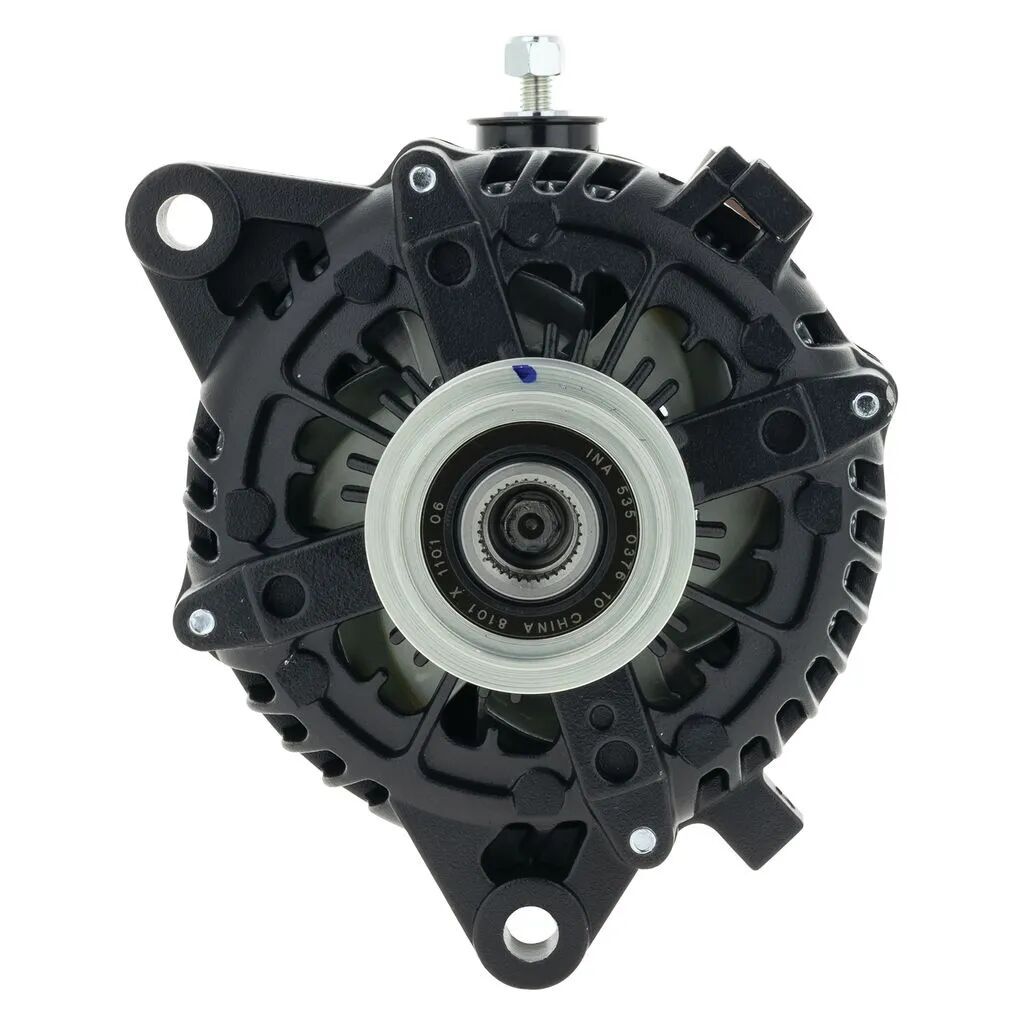

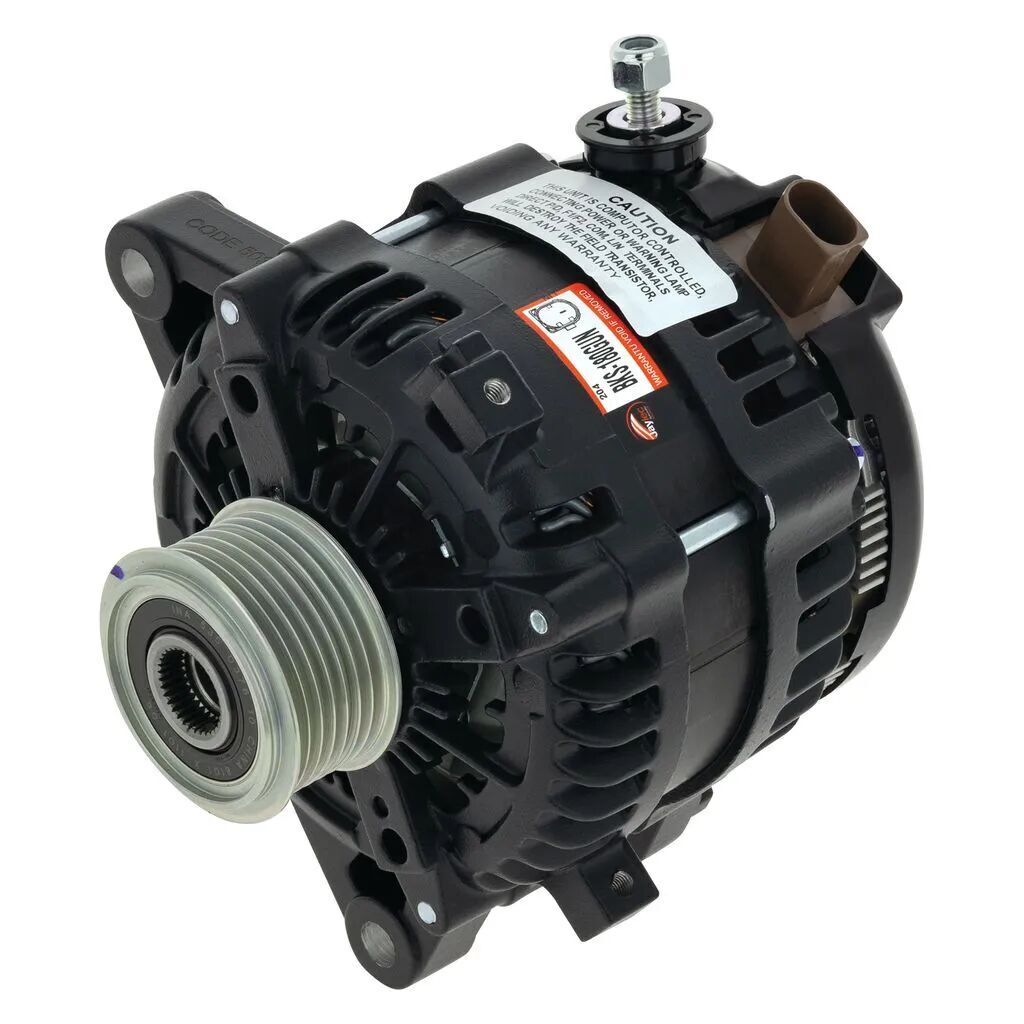

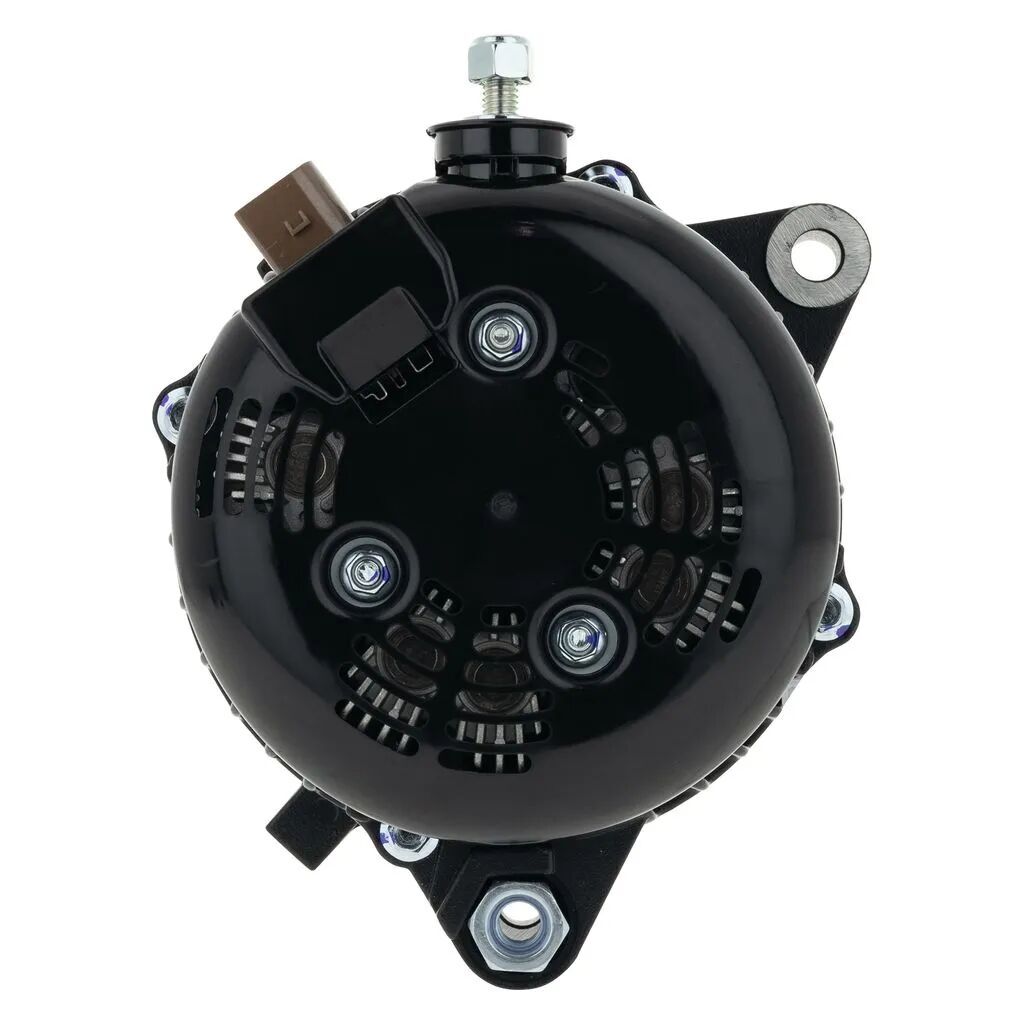

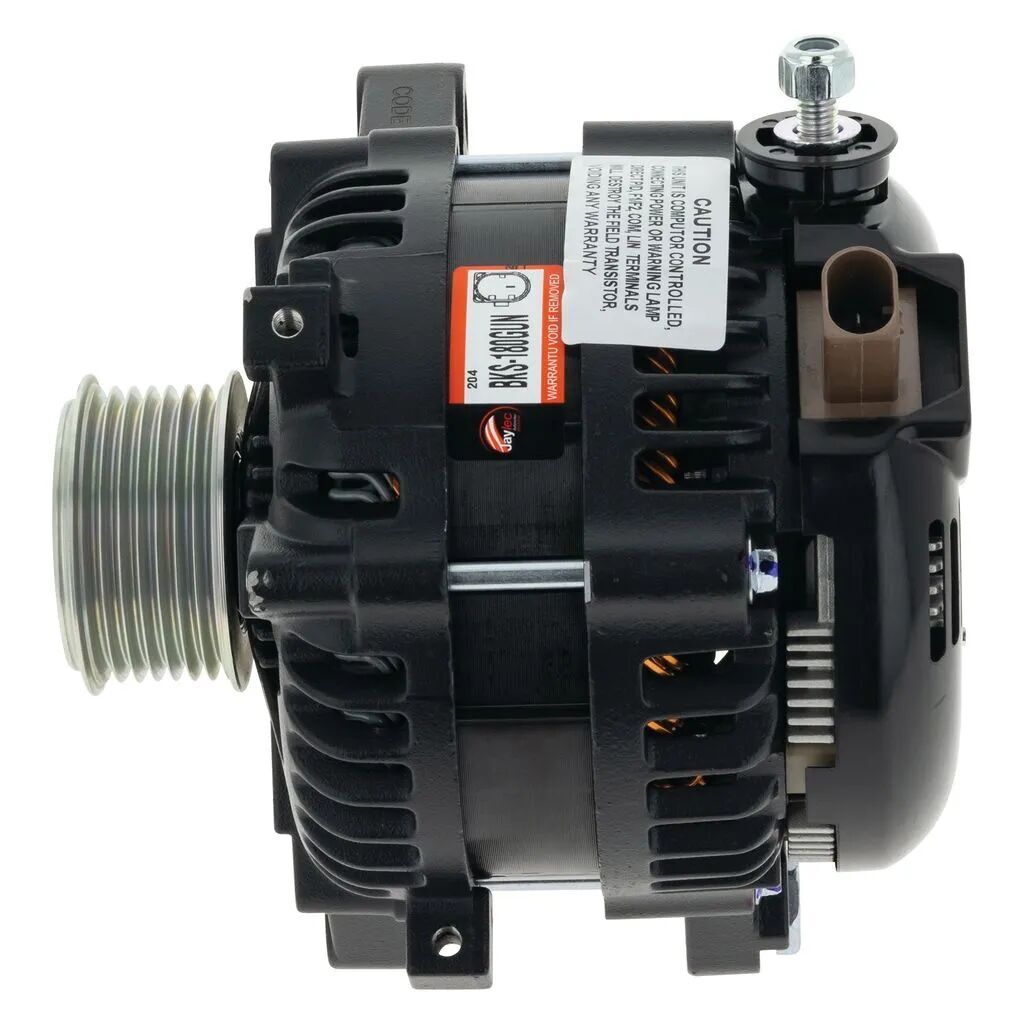

Toyota Hilux GUN Series 12V 180A Alternator

Vehicle Compatibility:

  • Toyota Hilux GUN Series 1GDFTV 2GDFTV Diesel

Important Notes:

  • Side entry regulator. If rear entry alternator is needed, use BKS-180TP.
  • ***  Please note a battery positive wiring upgrade is needed for this alternator. ***

We recommend this product be installed by a licensed Auto Electrician.



Specifications:

Voltage 12V
Amperage 180A
Mount Leg ID 52mm
C-C Mounts 160mm
Hole ID Top 12mm
Hole ID Bottom M10, 11mm
Shaft Size 17mm
Pulley Type 7PV, Clutch
Pulley Grooves 7
Pulley Diameter 58mm
Regulator Type Internal
Connections Plug No.   EP85-2
Terminals B+, LIN
Excitation External
Ground Negative
