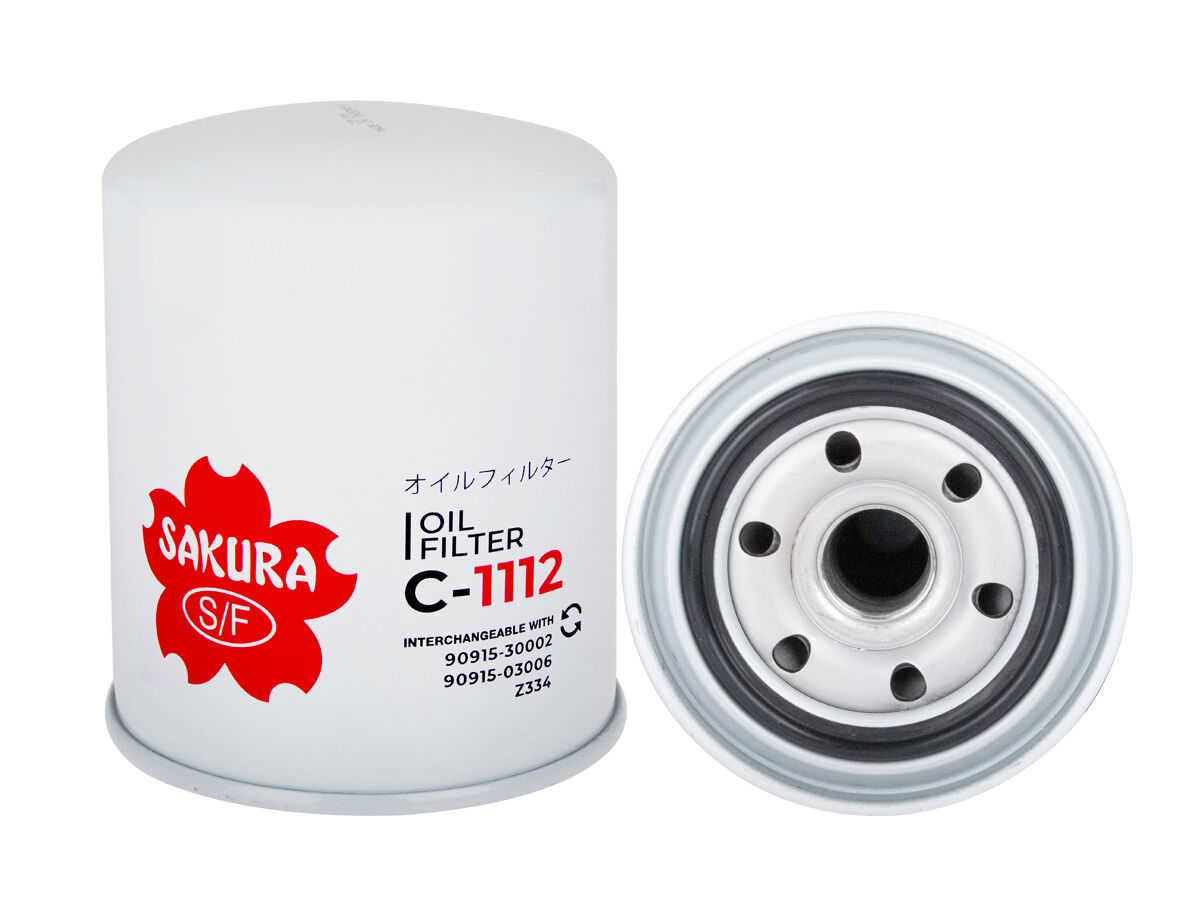

Sakura Oil Filter Fits Z334 WZ334

The Sakura C-1112 Oil Filter is a high-capacity spin-on filter designed for robust engine protection. Featuring a 120 mm height and 100 mm outer diameter, this filter uses a round gasket for a secure seal and incorporates both an anti-drain back valve and a 1.0 Kg/cm² bypass valve for consistent oil flow and protection under high-pressure conditions. Built with combination filtration technology, it effectively traps contaminants while ensuring optimal lubrication performance in demanding operating environments.

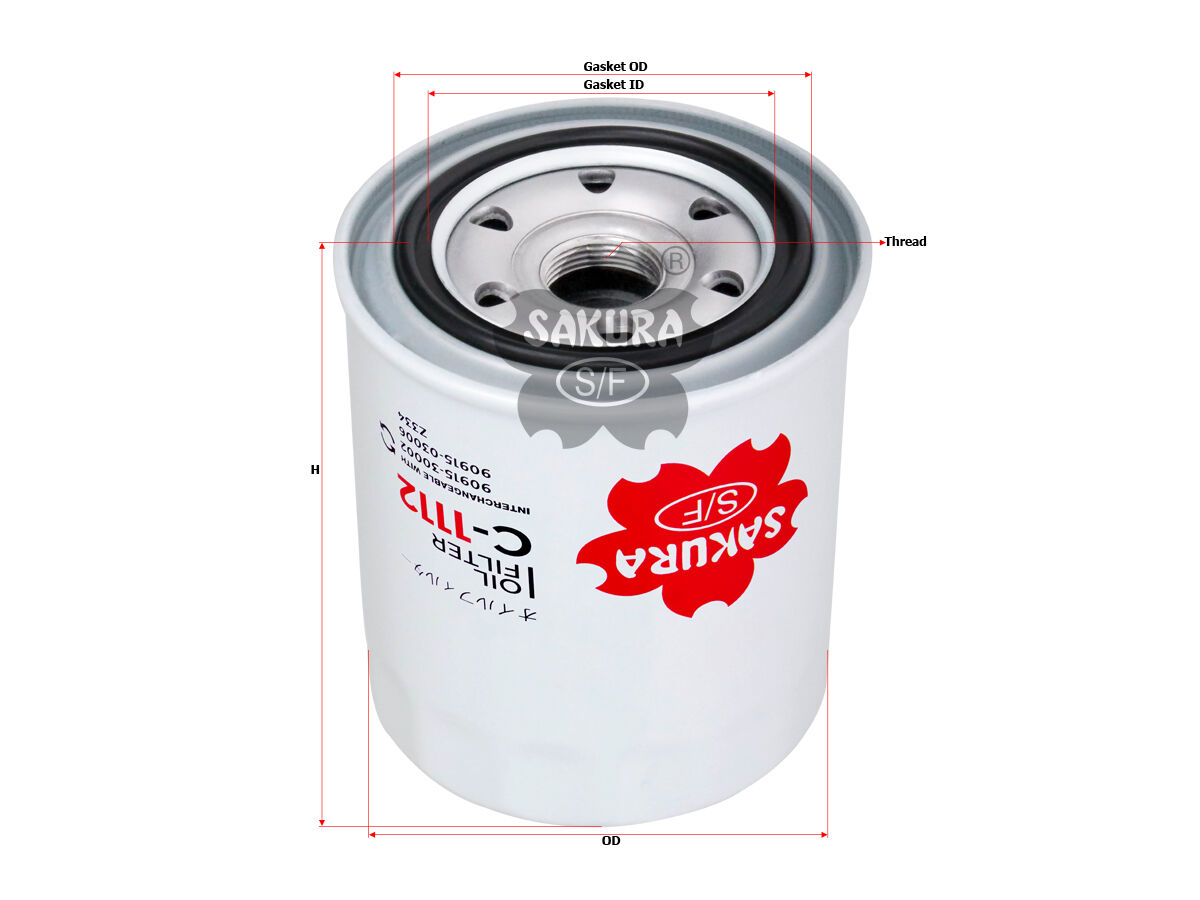

Technical Specifications:

Specification Details
Sakura Part Number C-1112
Status Release Product
Model Spin-On
Height (mm) 120
Outside Diameter (mm) 100
Thread Size M24X1.5-6H
Gasket Type Round
Gasket OD (mm) 79.5
Gasket ID (mm) 72
Filter Type Oil Filter
Filter Info Combination
Pack Size (Pcs) 25
Volume (m³) 0.041
Anti Drain Back Valve Yes
Bypass Valve (Kg/cm²) 1.0

Primary Applications:

Primary Application Manufacturer
90915-03006 Toyota
90915-30002 Toyota
9091F-30002 Hino
AY100-TY020 Nissan
