Sakura Oil Filter Fits Z9 WZ9 HDZ9 15600-41010 W940/1 W940/81

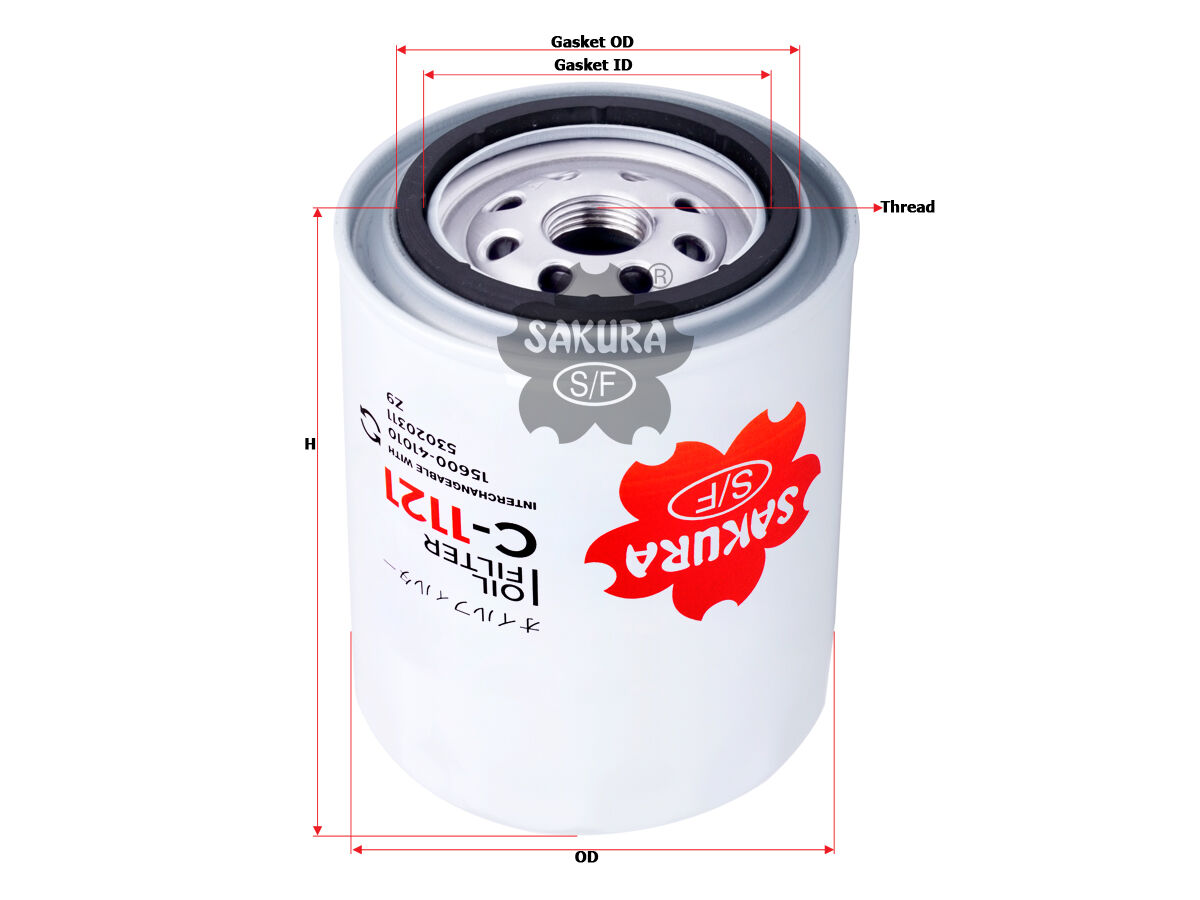

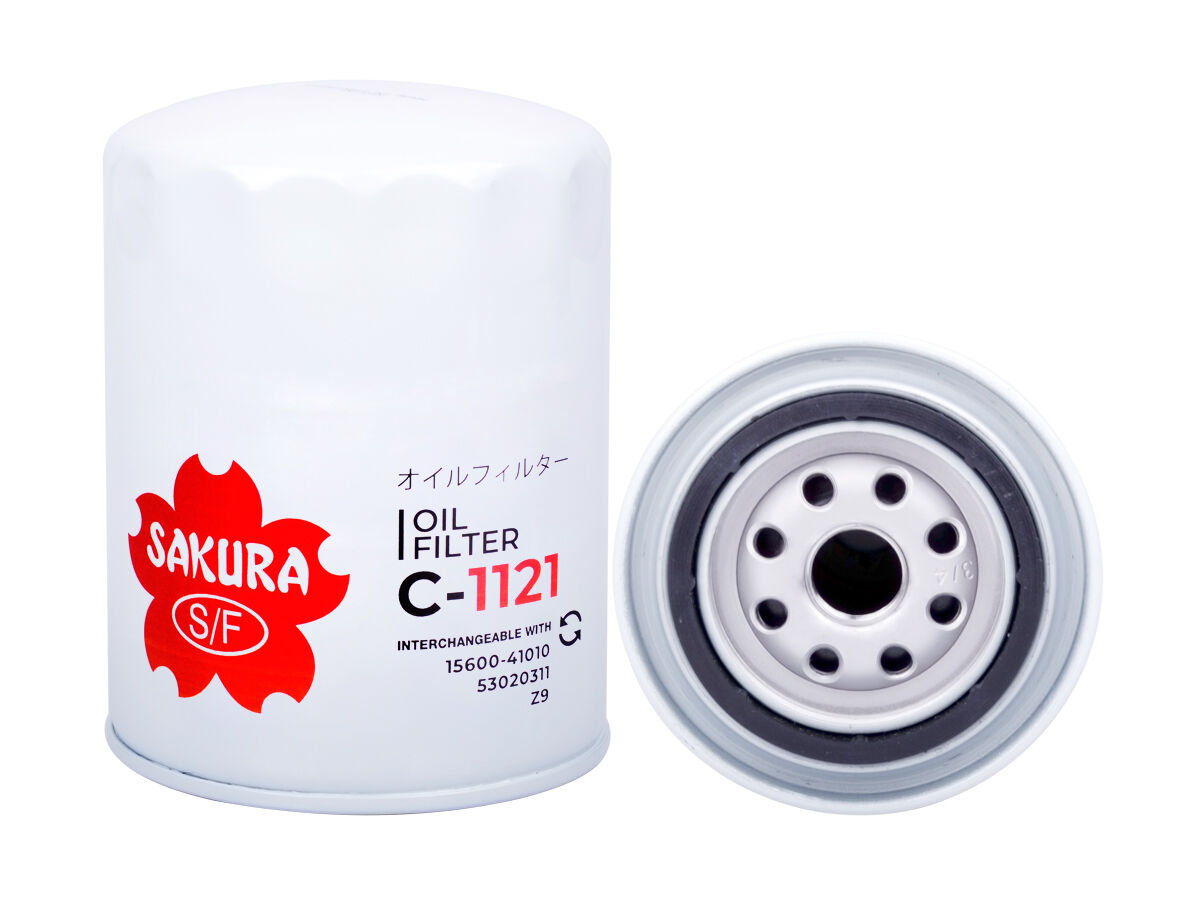

The Sakura C-1121 Oil Filter is a durable spin-on full flow filter designed to deliver reliable engine protection and performance. With a 130 mm height, 93 mm outer diameter, and square gasket design, it ensures a secure seal and consistent oil filtration. Equipped with an anti-drain back valve and a 1.0 Kg/cm² bypass valve, it maintains oil flow stability even in demanding conditions. Ideal for a wide range of passenger, light commercial, and industrial applications, the C-1121 helps extend engine life by efficiently removing contaminants.

Technical Specifications:

Specification Details
Sakura Part Number C-1121
Status Release Product
Model Spin-On
Height (mm) 130
Outside Diameter (mm) 93
Thread Size 3/4-16 UNF-2B
Gasket Type Square
Gasket OD (mm) 71
Gasket ID (mm) 63
Filter Type Oil Filter
Filter Info Full Flow
Pack Size (Pcs) 25
Volume (m³) 0.037
Anti Drain Back Valve Yes
Bypass Valve (Kg/cm²) 1.0

Primary Applications:

Primary Application Manufacturer
15600-41010 Toyota
15601-41010 Toyota
4130 046 Ford
5001123 Ford Finis Code
53020311 Chrysler
74511629 Fiat
8-97182282-0 Isuzu
AFL70MC Ford
D59AZ6731A Ford
L324 Chrysler
WL84-14-302 Mazda
WL84-14-302MC Mazda
