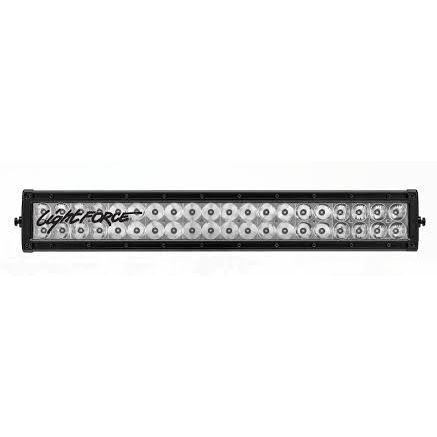

Lightforce D20XP LED Light Bar – 508mm (20") Dual Row, Black Bezel, 5000K

Light Bar Style: Dual Row | Length: 20" (508mm) | Colour Temp: 5000K | Voltage: 12–36V

Rugged black-bezel design with UV-resistant anodised aluminium housing
IP69K waterproof for harsh Aussie conditions (dust, rain, mud and wash-down)
Hard-coated polycarbonate lens – scratch & impact resistant
High output European LEDs tuned in reflectors for strong distance and spread
Complete kit with wiring harness and waterproof Deutsch connectors

Built for Australian 4WD Touring

Light up the track with the Lightforce D20XP Dual Row LED Light Bar — a tough, black-bezel 20-inch (508mm) bar engineered to handle Australia’s harshest environments. The extruded aluminium body is finished in a UV-resistant anodised coating, while the hard-coated polycarbonate lens stands up to stone strike and off-road abuse.

With a powerful 5000K daylight output and reflectors tuned around high-output European LEDs, the D20XP delivers impressive long-range performance in a clean, easy-to-fit package — ideal for bullbars, roof racks, canopies and work rigs.

Key Features

Extruded aluminium body with black anodised coating
IP69K rating to protect against moisture and contaminant ingress
Hard-coated, scratch and high impact resistant polycarbonate lens
Custom moulded strain relief connector fitted to military spec cable
Genuine Gore® waterproof membrane with mechanical seal
Over, under and reverse voltage protection
Pulse width modulation thermal management circuitry
Protected against electromagnetic and radio frequency interference (RFI)
Stainless steel brackets and mounting hardware
Comprehensive wiring harness included
Broad operating voltage range: 12V – 36V
Input cable length: 450mm | Wiring harness length: 2.5m
Deutsch waterproof connectors
RoHS certified

Kit Inclusions

1 × Lightforce Dual Row LED Bar
1 × Full wiring harness (including relay and switch connector)
2 × Stainless steel brackets and hardware
1 × User instructions

Specifications

Light Bar Style	Dual Row
Bar Length	20" (508mm)
Globe Type	LED
Distance (1 Lux)	568m
Distance (0.25 Lux)	1138m
Effective Lumens	7472
Raw Lumens	14080
Colour Temperature	5000K
Current Draw	10.8A @ 13.2V
Voltage Range	12V – 36V
Wattage	176W
Ingress Protection	IP69K
Beam Pattern	Driving (Dual Wattage)
Weight	3.17kg
