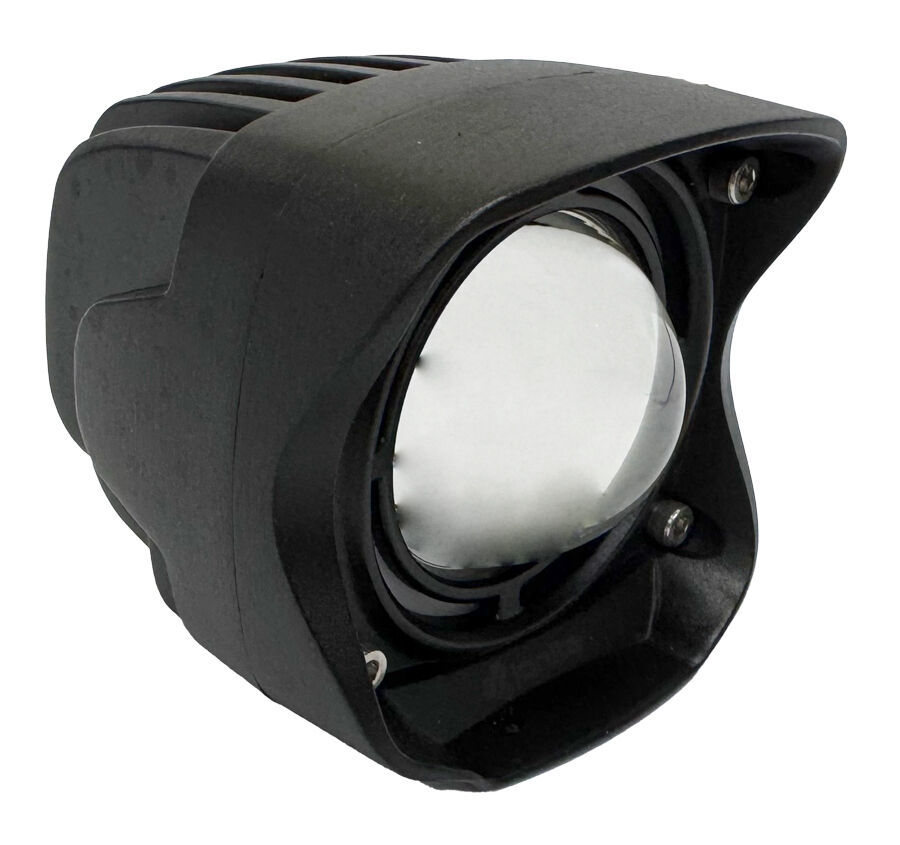

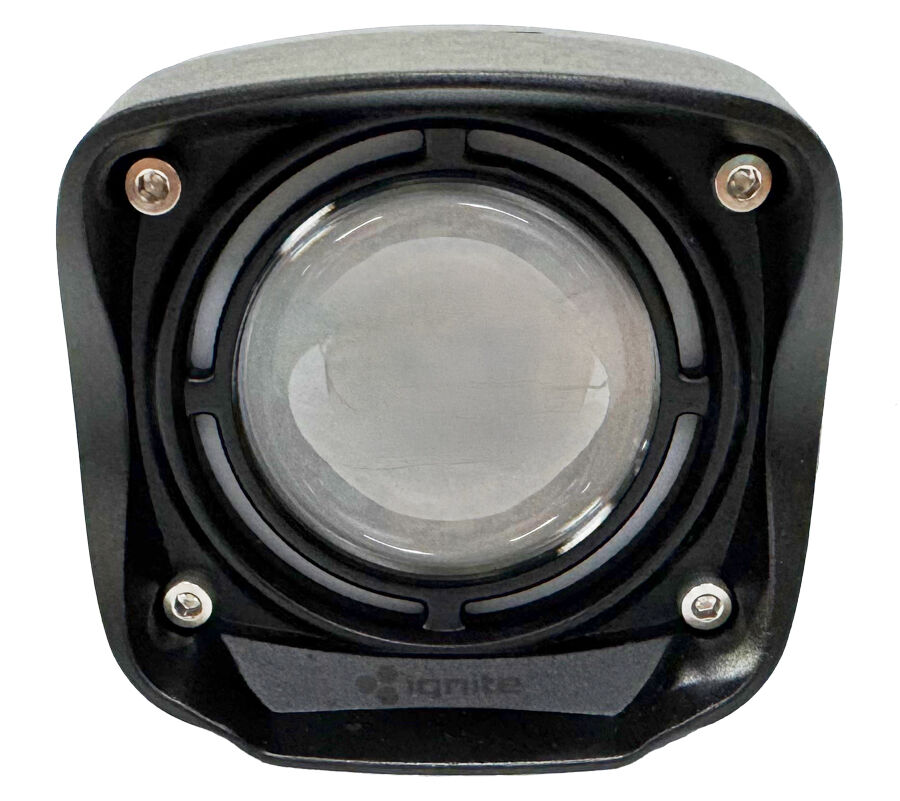

Ignite Miniature LED Driving Light 3.6" Single LED - IDL0136S

The Ignite Miniature LED Driving Light is built for compact mounting locations where strong long-range visibility is still required. Small in size but engineered to perform, this 3.6" single led driving light delivers a focused spot beam, durable construction and a built-in tri-colour position lamp.

The integrated position lamp can be set to white, amber or blue using a momentary switch, then retains the selected colour on the next power-up. It can also be left unwired where the position lamp is not required.

Features

  • 36W main light output with 3,500 lm raw lumens
  • 346 m beam reach at 1 Lux
  • 8° Spot (Pencil) beam pattern
  • Tri-colour position lamp: white, amber or blue
  • 9-36V DC multi-volt operation
  • Black powder coated die cast aluminium alloy housing
  • Lexan polycarbonate lens
  • 500mm lead with 4 pin Deutsch plug
  • IP68 rated with 20G shock resistance
  • ECE R149, ECE R10, CE and RoHS approvals

Specifications

  • Effective lumens: 1,800 lm
  • Peak beam intensity: 120,000 cd
  • Colour temperature: 5,700K
  • Main draw: 3.06A @ 12V / 1.53A @ 24V
  • Position light LEDs: 8 x 0.4W SMD
  • Position draw: 0.33A @ 12V / 0.16A @ 24V
  • Dimensions: 97.3 mm W x 89.3 mm H x 58.8 mm D
  • Weight: 760 g
  • Operating temperature: -40°C to +60°C
  • LED lifespan: 50,000 hours
  • Warranty: 3 years
