Lightforce Ford Ranger X Grille with Integrated Venom LED Driving Lights (PX2, 2015–2018)

Lightforce Ford Ranger X Grille with Integrated Venom LED Driving Lights | PX2 | 2015–2018

Factory-fit style. High-performance power.

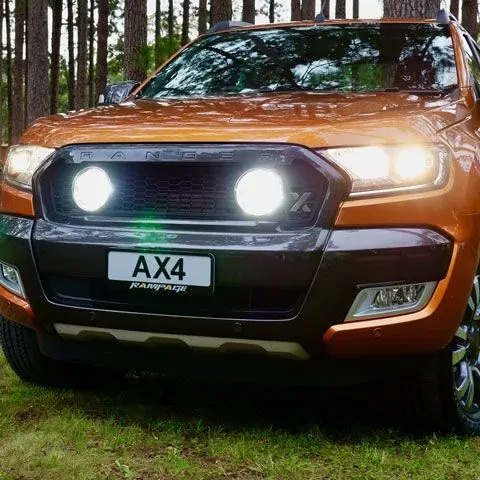

The Lightforce X Grille with integrated Venom LED Driving Lights (IG150RKIT) is a premium upgrade that transforms your Ford Ranger PX2 with a sleek, high-output lighting solution. Designed by AX4 and powered by Lightforce, the X Grille replaces your factory radiator grille with a precision-moulded assembly housing two integrated Venom LEDs — delivering a factory look with professional performance.

This innovative design eliminates the need for bull bars, nudge bars, or bulky light mounts. The X Grille fits seamlessly with minimal modification, concealing all wiring and hardware for a clean, OEM-style appearance. Fully compliant with vehicle safety and sensor systems, it maintains crash integrity while adding serious illumination power.

Key Features

Vehicle-Specific Fitment: Designed for Ford Ranger PX2 (2015–2018).

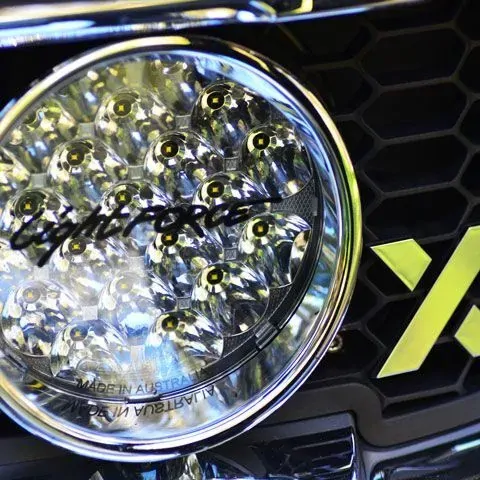

Integrated Venom LED Lights: Dual 75W LEDs produce 7850 raw lumens and 4407 effective lumens each.

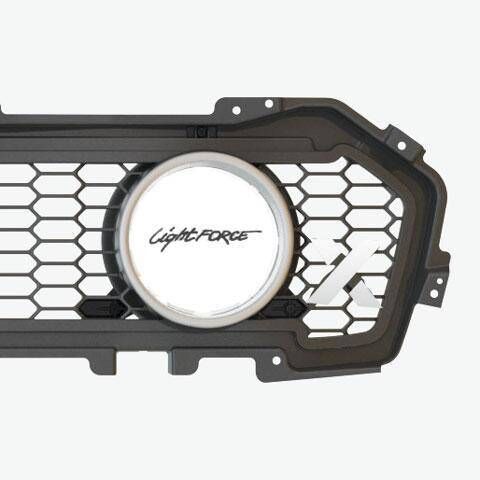

Precision Build: Reinforced UV-stable, glass-filled nylon frame with bright chrome trim.

Easy Installation: Plug-and-play wiring harness, switch, and headlight patch harness included.

Advanced Light Performance: Combo beam with 1 lux at 850m, 0.25 lux at 1700m.

Superior Sealing: IP68 & IP69K rated with Gore® waterproof membrane for dust and water resistance.

Smart Electronics: Reverse polarity, overload, and thermal protection circuitry.

High Durability: Shock-resistant, UV-protected, and built to withstand harsh Australian conditions.

Compliant Design: Does not affect crash rating or interfere with OEM sensors.

Specifications

Feature	Details
Part Number	IG150RKIT
Product Type	X Grille with Integrated LED Driving Lights
Vehicle Compatibility	Ford Ranger PX2 (2015–2018)
Input Voltage	10–32V DC
Wattage	75W per light
Light Output	7850 Raw Lumens / 4407 Effective Lumens per light
Beam Distance	1 lux at 850m / 0.25 lux at 1700m
Colour Temperature	5000K
CRI	70
Current Draw	5.7A @ 13.2V (each light)
Ingress Protection	IP68 & IP69K Rated
Body Material	Glass-Filled Nylon Frame with Chrome Trim
LED Lifespan	50,000 Hours
Operating Temperature	-40°C to +63°C
Weight	Approx. 3kg (lights) + 1kg grille assembly
Certifications	CE Certified, Vehicle Collision Avoidance Compliant
Warranty	3 Years
Brand	Lightforce
SKU	IG150RKIT

Feature

Details

Part Number

IG150RKIT

Product Type

X Grille with Integrated LED Driving Lights

Vehicle Compatibility

Ford Ranger PX2 (2015–2018)

Input Voltage

10–32V DC

Wattage

75W per light

Light Output

7850 Raw Lumens / 4407 Effective Lumens per light

Beam Distance

1 lux at 850m / 0.25 lux at 1700m

Colour Temperature

5000K

CRI

Current Draw

5.7A @ 13.2V (each light)

Ingress Protection

IP68 & IP69K Rated

Body Material

Glass-Filled Nylon Frame with Chrome Trim

LED Lifespan

50,000 Hours

Operating Temperature

-40°C to +63°C

Weight

Approx. 3kg (lights) + 1kg grille assembly

Certifications

CE Certified, Vehicle Collision Avoidance Compliant

Warranty

3 Years

Brand

Lightforce

SKU

IG150RKIT

Kit Inclusions

1 x X Grille for Ford Ranger PX2

2 x Integrated Lightforce Venom LED Driving Lights (with clear spot filters)

1 x Full plug-and-play wiring harness & switch

1 x Dedicated plug-and-play headlight patch harness

1 x Installation Instructions

Vehicle Compatibility: Ford Ranger PX2 (2015–2018). Designed as a direct grille replacement — minimal modification required. Maintains OEM sensors and safety compliance.
