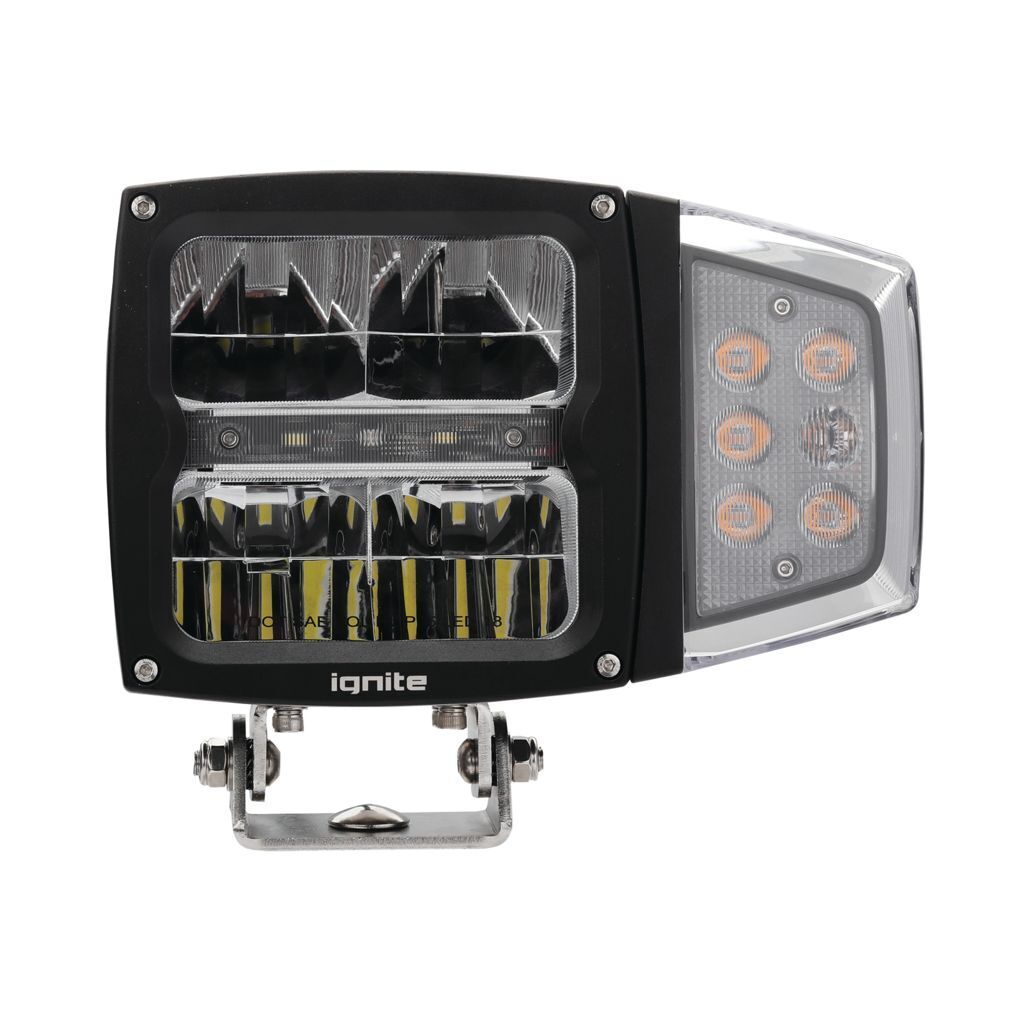

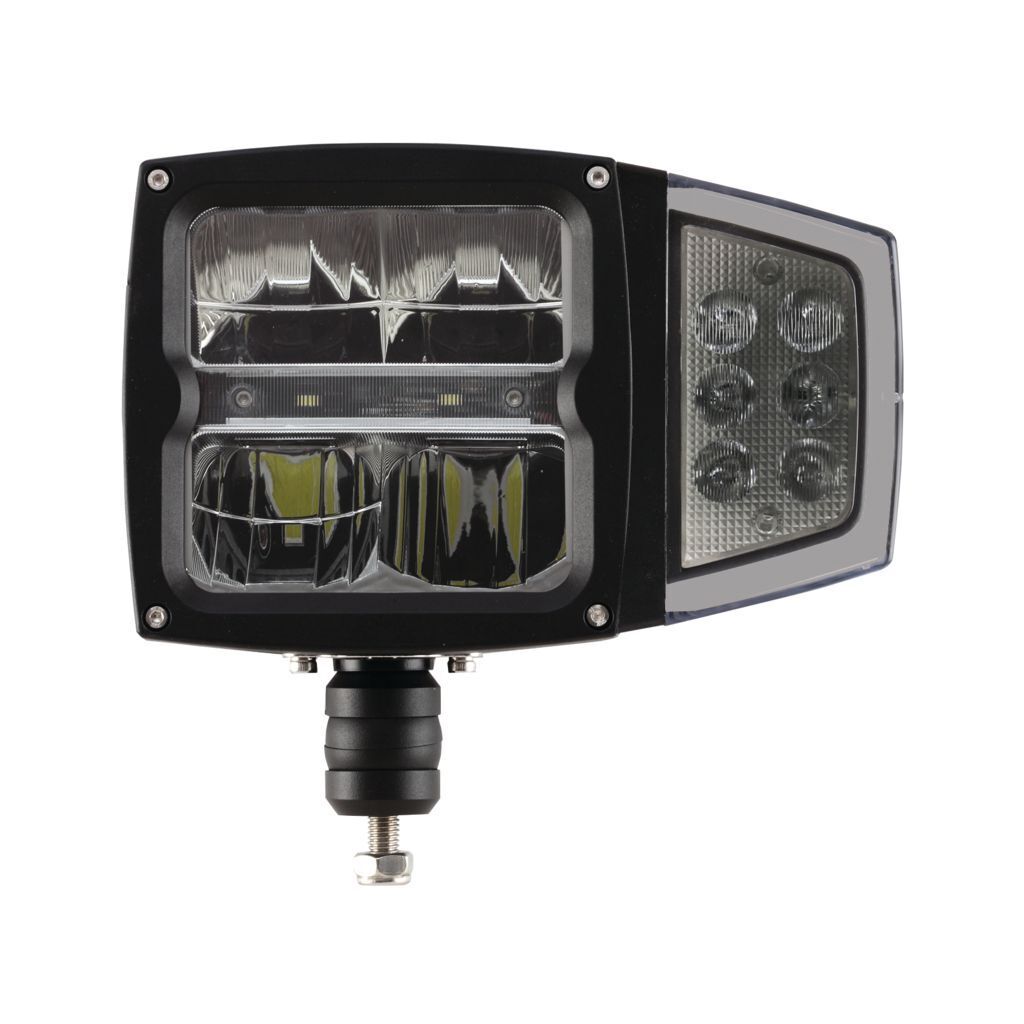

Ignite LED Headlight 10-30V High/Low Beam 60W with Indicator – Black Face, 1,800 Low / 3,600 High Lumens (SKU: IHL4BI)

Whether you're chasing corrugations at dusk or crawling a track well after dark, your headlights are the one piece of gear you can't afford to get wrong. The Ignite Square Combined LED Headlight is a genuine 10-30 volt multi-fit unit, putting out 1,800 raw lumens on low beam and 3,600 raw lumens on high beam at a clean 5,700K, so you get the coverage and clarity of a proper LED conversion without the flicker or voltage headaches that plague cheaper units. Built into the same black-faced housing is an integrated indicator lamp with multi-directional mounting, so you're covered for low beam, high beam, indicator and position lighting from one 227.5mm x 150mm unit.

Built for Real 4WD Use, Not Just the Showroom

Cheap headlights let you down when it matters — dimming on rough tracks, fogging up in the wet, or failing outright when the voltage isn't spot on. The Ignite LED Headlight is housed in a black powder-coated, extruded 6063 aluminium body with an integrated heat-sink and pressure-equalising vent, and backed by Integrated Electronic Thermal Management (ETM) to keep the LEDs running cool and consistent. Over and under voltage protection plus reverse polarity protection mean it's just as happy on a 12V dual-cab as a 24V truck, and an IP68 / IP69K rating means dust, mud and high-pressure water washouts won't get in the way.

Key Benefits

Genuine low and high beam performance from Polycarbonate Free Form Optical Reflector technology; integrated indicator lamp that mounts left, right or on top for flexible fitment; runs across a full 10-30 volt range with over/under voltage and reverse polarity protection; sealed to IP68 and IP69K for reliable performance in mud, dust and water crossings; 50,000-hour LED lifespan backed by a 5-year warranty; and a slimline black fascia that keeps the look factory-clean.

Key Features:

• Low Beam: 1,800 Raw Lumens / 1,530 Effective Lumens @ 5,700K
• High Beam: 3,600 Raw Lumens / 3,060 Effective Lumens @ 5,700K
• Indicator Lamp: 400 Raw Lumens / 340 Effective Lumens @ 2,200K (amber)
• Position Lamp: 160 Raw Lumens / 130 Effective Lumens @ 5,700K
• Current Draw: 6.7A @ 12V / 3.31A @ 24V
• Polycarbonate Free Form Optical Reflector Technology for low and high beam
• Black powder-coated extruded 6063 aluminium housing with integrated heat-sink
• Integrated Electronic Thermal Management (ETM)

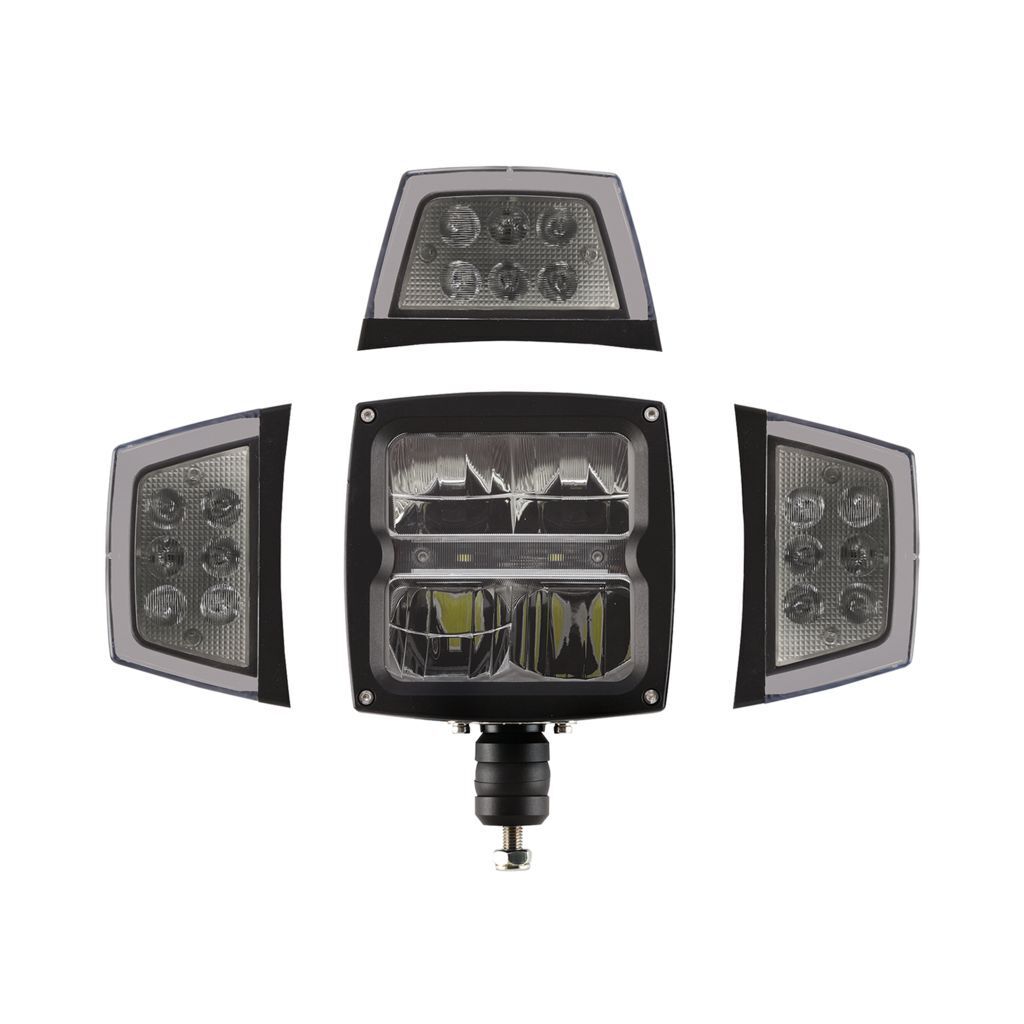

• Multi-directional indicator mounting — left, right, or top of housing
• Stainless steel single-bolt mount bracket and hardware
• 400mm lead with 4-pin Deutsch plug
• Over/under voltage and reverse polarity protection
• UV, water and shock resistant
• 50,000-hour LED lifespan
• ECE R6, R7, R10, DOT and CE approved
• IP68 and IP69K rated
• Operating temperature: -40°C to +60°C
• 5-year warranty

What's Inside:

• 2 x 10W High Intensity ETI LEDs for Low Beam
• 4 x 10W High Intensity ETI LEDs for High Beam
• 5 x 5W High Intensity Prolight Amber LEDs for Indicator Lamp
• 2 x 1W LumiLEDs LEDs for Position Lamp
• Optional spare part: IWH030 Adaptor Harness for negative-switched vehicles

Specifications:

Product Brand

Ignite Lighting is one of Adventure Industries' own house brands, built specifically for Australian 4WD, touring and camping conditions. From driving lights to combined headlamps like this one, Ignite gear is designed to hold up to corrugations, creek crossings and long days on dirt — genuine lumens, real weatherproofing and honest current draw figures, so you know exactly what you're bolting to the front of your rig.
