Lightforce BEAST Driving Light Universal Wiring Harness – 12V

The Lightforce BEAST is one of the most capable driving lights available in Australia — nearly 20,000 raw lumens, three distinct beam modes, and performance that puts most competitors in the shade. But none of that capability means anything if the wiring behind it can't support it. The Lightforce BEAST Universal Wiring Harness (LFDLHBEAST-U) is the dedicated harness engineered specifically for the BEAST, designed to unlock and operate all three of the BEAST's lighting modes from the comfort of your cabin. It's not a generic driving light harness — it's the correct harness, built from the ground up to match the BEAST's smart electronics. If you've invested in a set of BEASTs, this harness is what completes the install properly.

Note: This wiring harness is required for correct installation of Lightforce BEAST driving lights and must be used to enable the full 3-mode operation.

Engineered for BEAST's 3-Mode Operation

The BEAST driving light isn't a simple on/off light — it operates in three distinct modes that deliver very different beam patterns and power outputs depending on what the terrain and conditions demand:

• SPOT mode — focused, long-range beam for maximum distance down the road or track
• FLOOD mode — wide spread illumination for close-in visibility on tight bush tracks, campsites, and slow technical terrain
• BEAST mode — full combined output, running spot and flood simultaneously at maximum power for the most demanding conditions

Standard driving light harnesses have no way to control these modes. The LFDLHBEAST-U is wired specifically to support all three, with the included BEAST Smart Rocker Switch giving you seamless mode selection from inside the cabin — short press to toggle between SPOT and FLOOD, long press to activate BEAST mode or resync paired lights.

True Plug-and-Play — No Guesswork

One of the biggest headaches with driving light installation is figuring out whether your vehicle runs a positive or negative switched headlight circuit — and then wiring the harness correctly to match. The LFDLHBEAST-U eliminates that entirely. Positive and negative switching is handled electronically — the harness detects your vehicle's switching type automatically and the output to the switch is always positive. No rewiring, no guessing, no risk of getting it wrong. Connect the adaptors, route the cables, and the system takes care of the switching logic itself.

Single 8mm Firewall Connector — Clean, Simple Routing

Running wiring through a vehicle's firewall is typically the fiddliest part of any driving light install — finding a grommet, threading a bulky connector through, and hoping it all fits. The LFDLHBEAST-U makes this as painless as it gets: a single 8mm moulded 8-pin connector passes through the firewall to connect the engine bay harness to the cabin switch loom. At just 8mm in diameter, it fits through a small grommet or existing hole without modification on most vehicles, and the single connection point means there's only one thing to thread through instead of multiple wires.

HB3 and H4 Patch Harnesses Included — Fits Most Australian 4x4s

The kit includes both HB3 and H4 headlight patch harnesses, which cover the headlight connector types found on the vast majority of popular Australian 4x4s and utes — Hilux, Ranger, Patrol, LandCruiser, D-MAX, Triton, BT-50, Amarok, and many more. Simply select the patch harness that matches your vehicle's headlight connector, plug it in, and connect the three wires to the corresponding bullet terminals on the driving light harness. For vehicles not running HB3 or H4 connectors, the included T-taps and spade terminals cover direct wire connections to any headlight circuit.

BEAST Smart Rocker Switch Included — Two Mounting Options

The included BEAST Smart Rocker Switch gives in-cabin control of all three operating modes and can be installed in two configurations to suit your vehicle:

• Universal panel mount — mounts to any dashboard surface via the included adhesive backing. Works in any vehicle, no modifications required. Wiring can be surface-routed or hidden through a 10mm hole behind the switch for a cleaner finish.
• TY2 OEM-style in-dash switch — snaps into a spare switch slot in the dash for a factory-integrated look on compatible vehicles. Scans a QR code in the instructions to check TY2 compatibility for your specific vehicle.

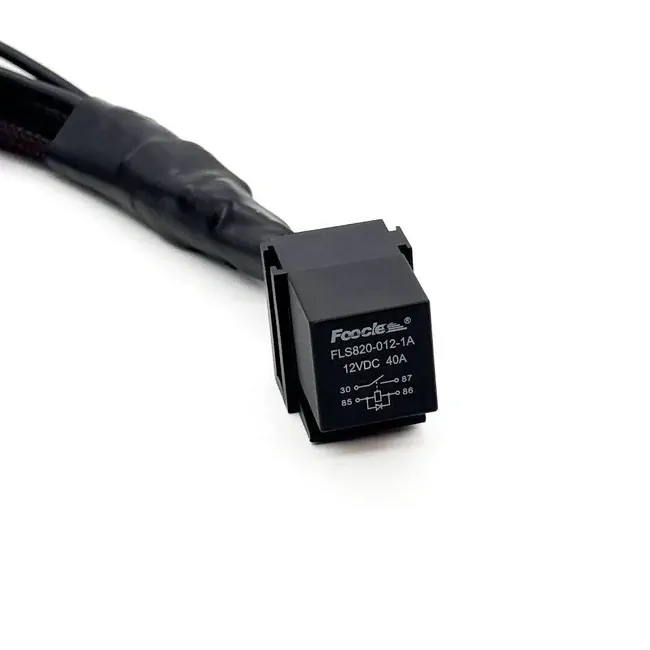

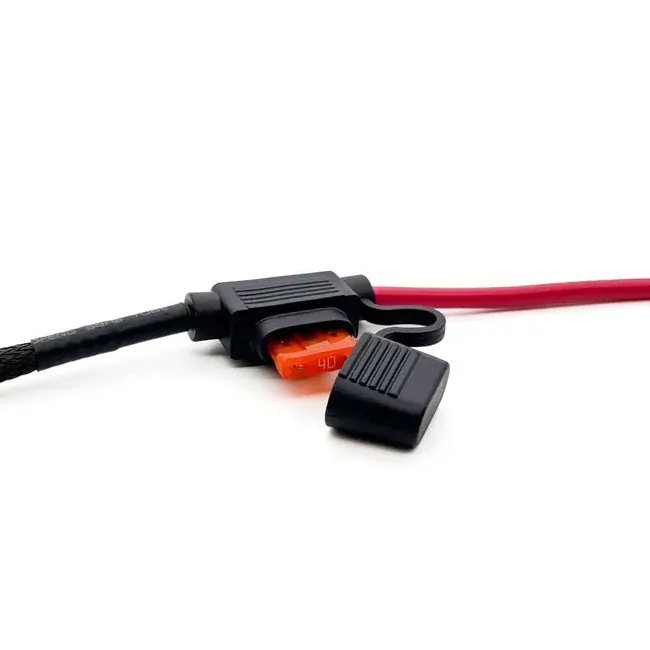

40A Relay and 40A Fuse — Rated for BEAST's Full Output

The BEAST pushes serious current — up to 13 amps per light at 13.2V in BEAST mode, meaning a pair of lights can draw over 26 amps combined. The harness is built around a 40-amp relay and 40-amp fuse, properly rated for the BEAST's maximum draw without running the lights through your vehicle's factory headlight circuit. Your OEM wiring stays completely protected — the relay does the switching, not your headlight switch.

DRL Capability — Optional Daytime Running Light Function

The harness includes a brown ignition pickup wire that, when connected to a switched ignition source, enables the BEAST's Daytime Running Light function — keeping your driving lights active at reduced output during daylight hours for increased visibility to oncoming traffic. If you prefer not to run DRL, simply leave the brown wire disconnected and secured — no impact on any other functionality.

Built for a Clean, Professional Install

Every component needed for a factory-quality result is in the box — relay, fuse, patch harnesses, T-taps in two wire sizes, spade terminals, cable ties, and the smart switch. The insulated sleeved cable runs are pre-terminated and colour-coded, and the entire system is documented with clear step-by-step instructions covering standard and non-standard vehicle configurations. A DIY installer with basic tools and a few hours will have a result that looks and performs like a professional fitment.

What's in the Box

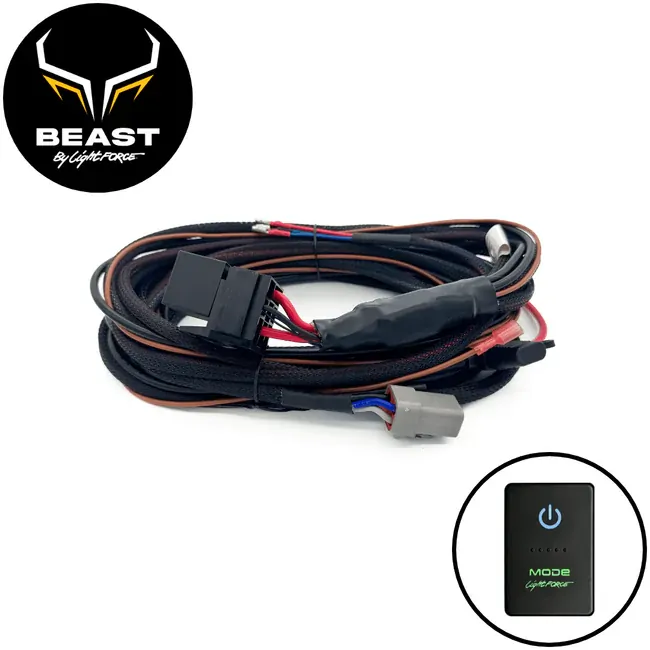

• 1x 12V BEAST driving light harness (including 40A relay and 40A fuse)

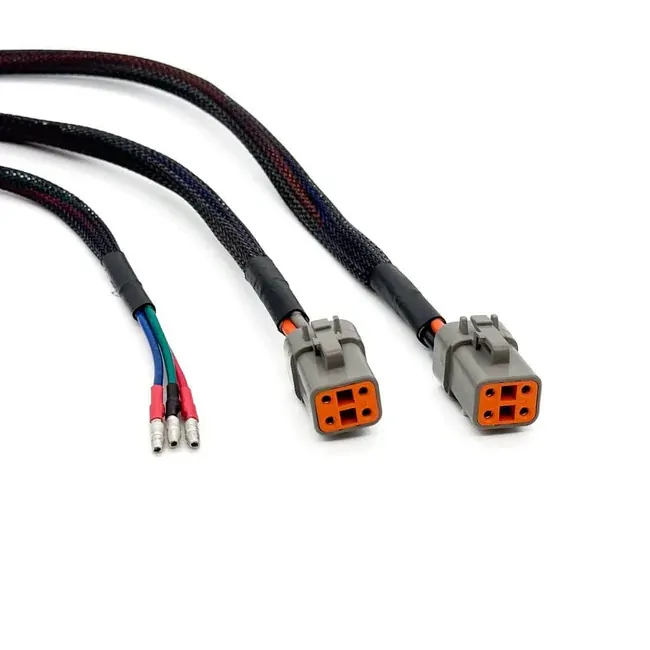

• 1x HB3 patch harness
• 1x H4 patch harness
• 1x BEAST Smart Rocker Switch (with universal panel mount and TY2 in-dash attachment)
• 1x relay mounting screw
• 8x T-taps (4x in each of 2 wire sizes)
• 3x insulated male spade terminals
• 10x cable ties
• 1x user instructions

Technical Specifications

Part Number	LFDLHBEAST-U
Brand	Lightforce
Voltage	12V
Relay Rating	40A
Fuse Rating	40A
Switching	Positive or negative (electronically controlled — auto-detected)
Firewall Connector	Single 8mm diameter moulded 8-pin connector
Headlight Adaptors Included	HB3 and H4
Switch Input Voltage	10–16V
Switch Output Current	0.3A per output
Switch Mounting	Universal panel mount (adhesive) or TY2 OEM in-dash slot
Modes Supported	SPOT, FLOOD, BEAST (3-mode operation)
DRL Support	Yes (optional — via ignition pickup wire)
Compatible Lights	Lightforce BEAST 230mm LED Driving Lights
Warranty	1 year (harness and accessories)

Important: This harness is designed exclusively for use with Lightforce BEAST driving lights. It is not compatible with other Lightforce models or third-party driving lights. Vehicle-specific harnesses with pre-terminated headlight connectors are also available for popular models including LandCruiser 70 Series, LandCruiser 200 Series, Hilux, and Mazda BT-50 — check for your vehicle before ordering.

Ideal for: Anyone installing Lightforce BEAST driving lights who wants the full 3-mode operation, a clean DIY or professional-quality install, and hassle-free integration with their vehicle's existing headlight circuit — without any guesswork about switching polarity or firewall routing.
