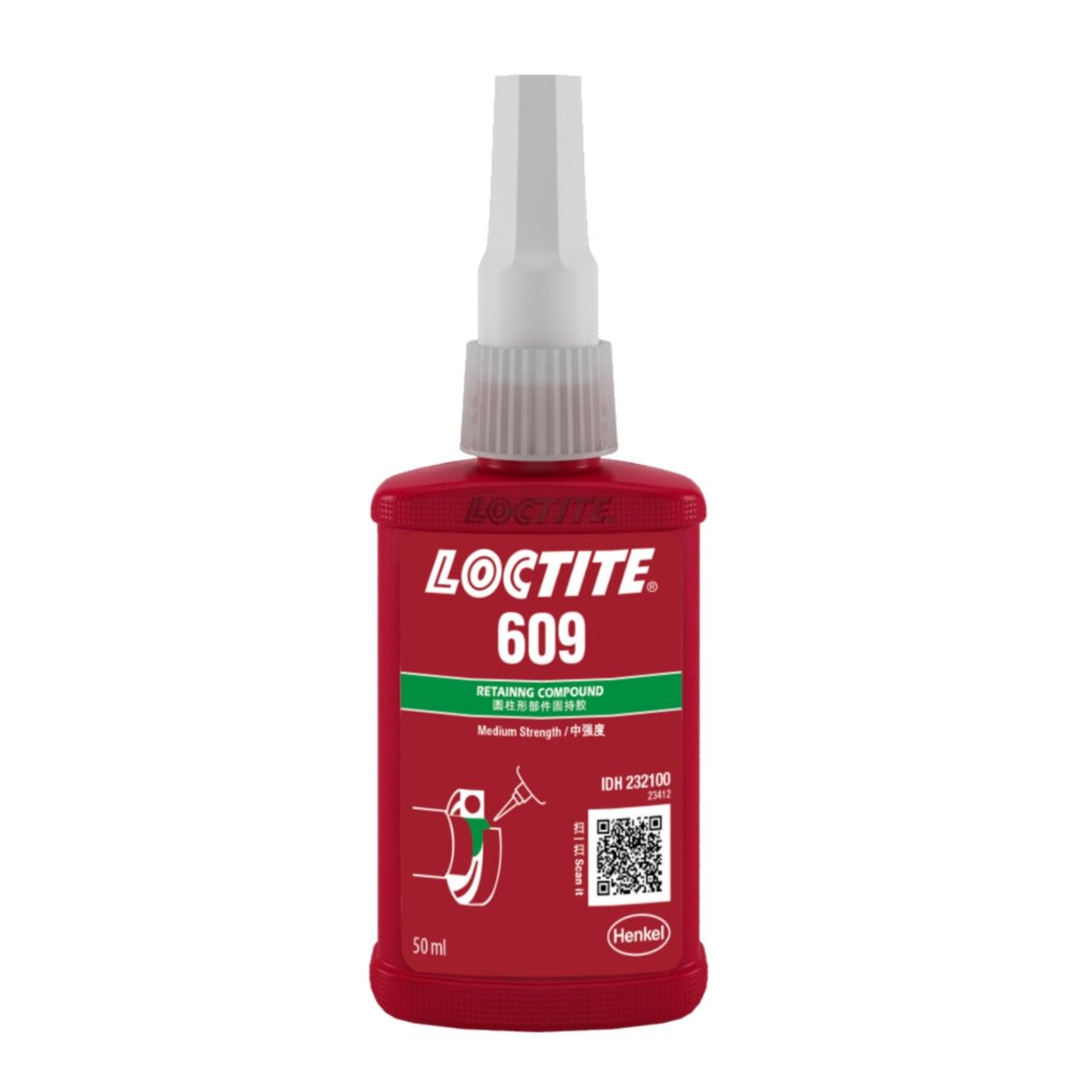

Loctite 609 Retaining Compound Med/High Strength

LOCTITE® 609 is a 1-part, high-strength, anaerobic-curing retaining compound designed for bonding close-fitting cylindrical parts. Ideal for locking bushings, sleeves, and rotor assemblies on shafts, this green adhesive cures between metal surfaces in the absence of air, producing a corrosion-free, high-strength bond.

Key Features:

  • High Strength: Provides a strong, permanent bond for cylindrical parts.
  • Low Viscosity: Flows easily to fill gaps and augment press fits.
  • Fluorescent: Visible under UV for quality control.
  • Wide Temperature Range: Operates from -55°C to 150°C (-65°F to 300°F).
  • Corrosion Resistant: Bonds metal without rust or corrosion formation.

Technical Specifications:

Specification Details
Loctite Number 609
Colour Green
Cure Type Anaerobic cure
Application Method Dispense gun, Manual dispense system
Applications Close fitting cylindrical parts, Retaining
Fixture Time 10 min
Gap Fill 0.15 mm
Shear Strength (Steel) 2300 psi (15 N/mm²)
Operating Temperature -55°C to 150°C (-65°F to 300°F)
Viscosity 120 mPa·s (cP)
Physical Form Liquid
Specific Gravity @ 25°C 1.1
